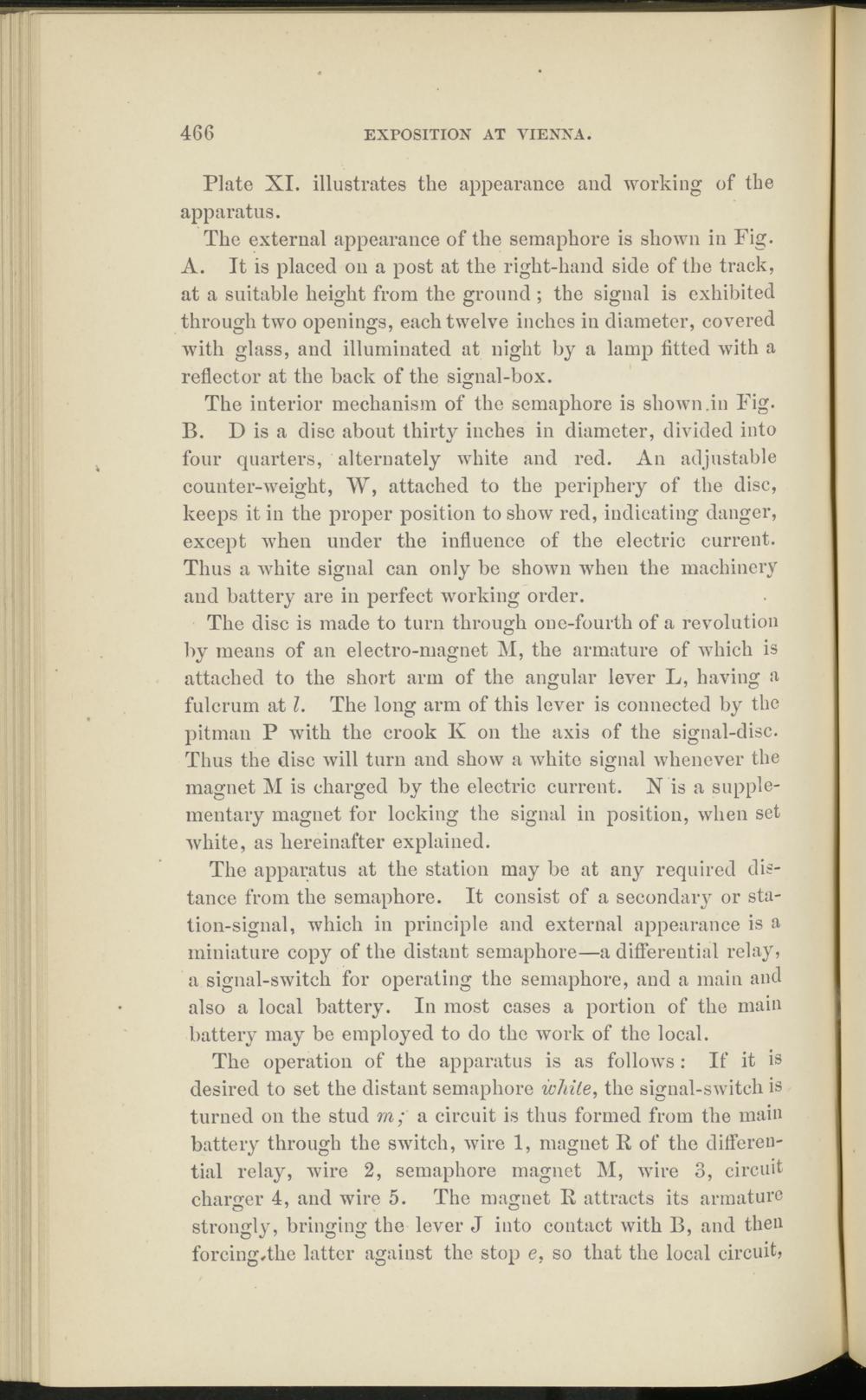

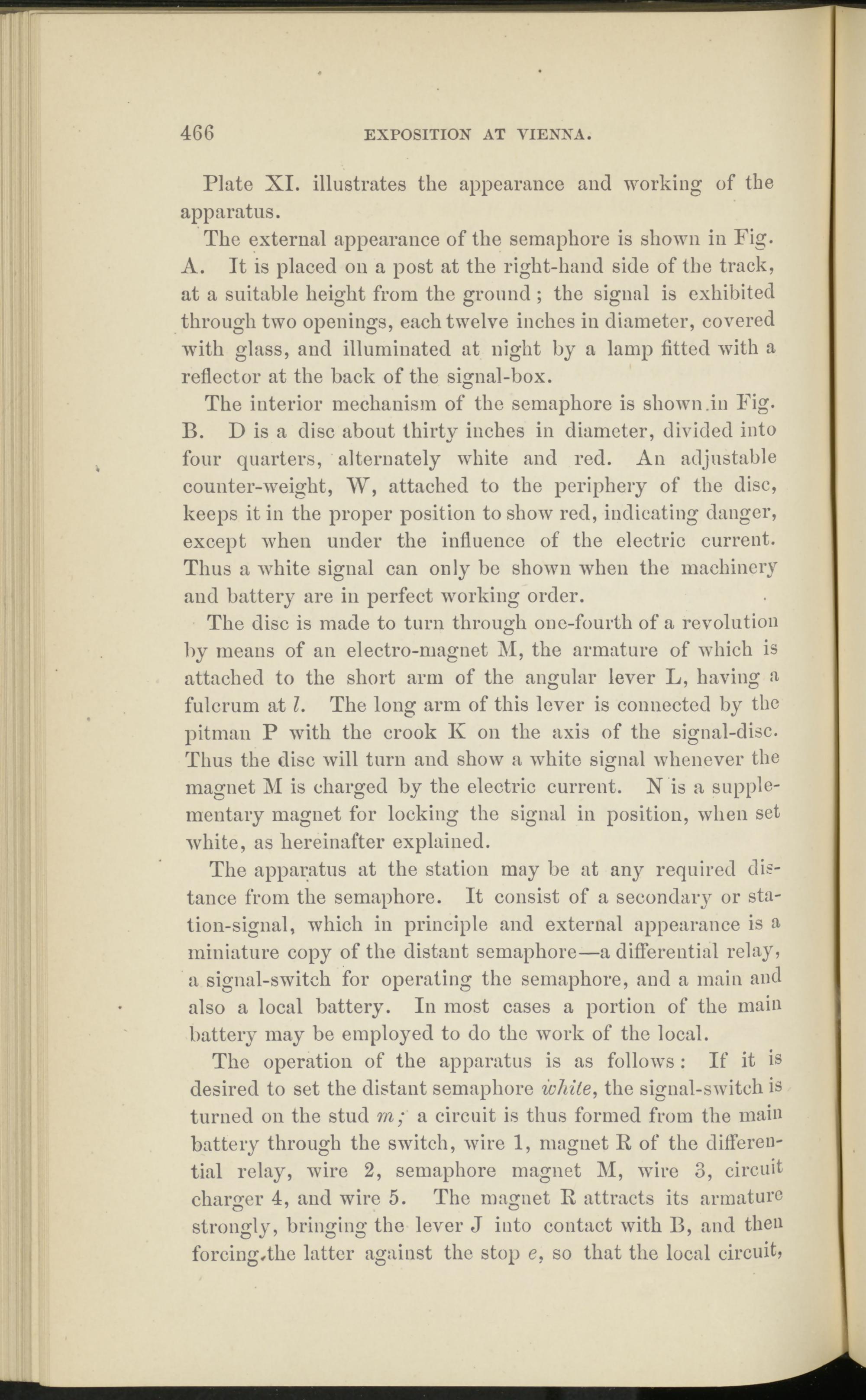

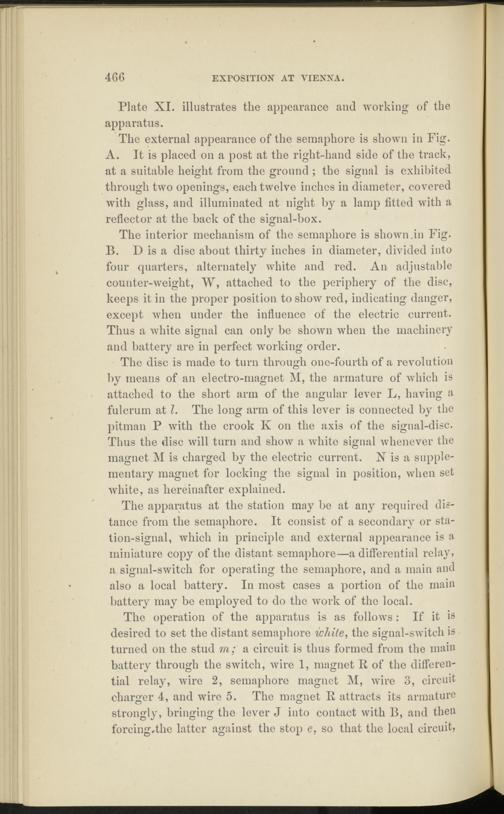

EXPOSITION AT VIENNA.

Plate XI. illustrates the appearance and working of the apparatus.

The external appearance of the semaphore is shown in Fig.

A. It is placed on a post at the right-hand side of the track, at a suitable height from the ground ; the signal is exhibited through two openings, each twelve inches in diameter, covered with glass, and illuminated at night by a lamp fitted with a reflector at the back of the signal-box.

The interior mechanism of the semaphore is shown .in Fig.

B. D is a disc about thirty inches in diameter, divided into four quarters, alternately white and red. An adjustable counter-weight, W, attached to the periphery of the disc, keeps it in the proper position to show red, indicating danger, except when under the influence of the electric current. Thus a white signal can only be shown when the machinery and battery are in perfect working order.

The disc is made to turn through one-fourth of a revolution by means of an electro-magnet M, the armature of which is attached to the short arm of the angular lever L, having a fulcrum at l. The long arm of this lever is connected by the pitman P with the crook K on the axis of the signal-disc. Thus the disc will turn and show a white signal whenever the magnet M is charged by the electric current. X is a supple­mentary magnet for locking the signal in position, when set white, as hereinafter explained.

The apparatus at the station may be at any required dis­tance from the semaphore. It consist of a secondary or sta­tion-signal, which in principle and external appearance is a miniature copy of the distant semaphorea differential relay, a signal-switch for operating the semaphore, and a main and also a local battery. In most cases a portion of the main battery may be employed to do the work of the local.

The operation of the apparatus is as follows : If it is desired to set the distant semaphore while , the signal-switch is turned on the stud m; a circuit is thus formed from the main battery through the switch, wire 1, magnet R of the differen­tial relay, wire 2, semaphore magnet M, wire 3, circuit charger 4, and wire 5. The magnet R attracts its armature strongly, bringing the lever J into contact with B, and then forcing,the latter against the stop e, so that the local circuit,
